Description

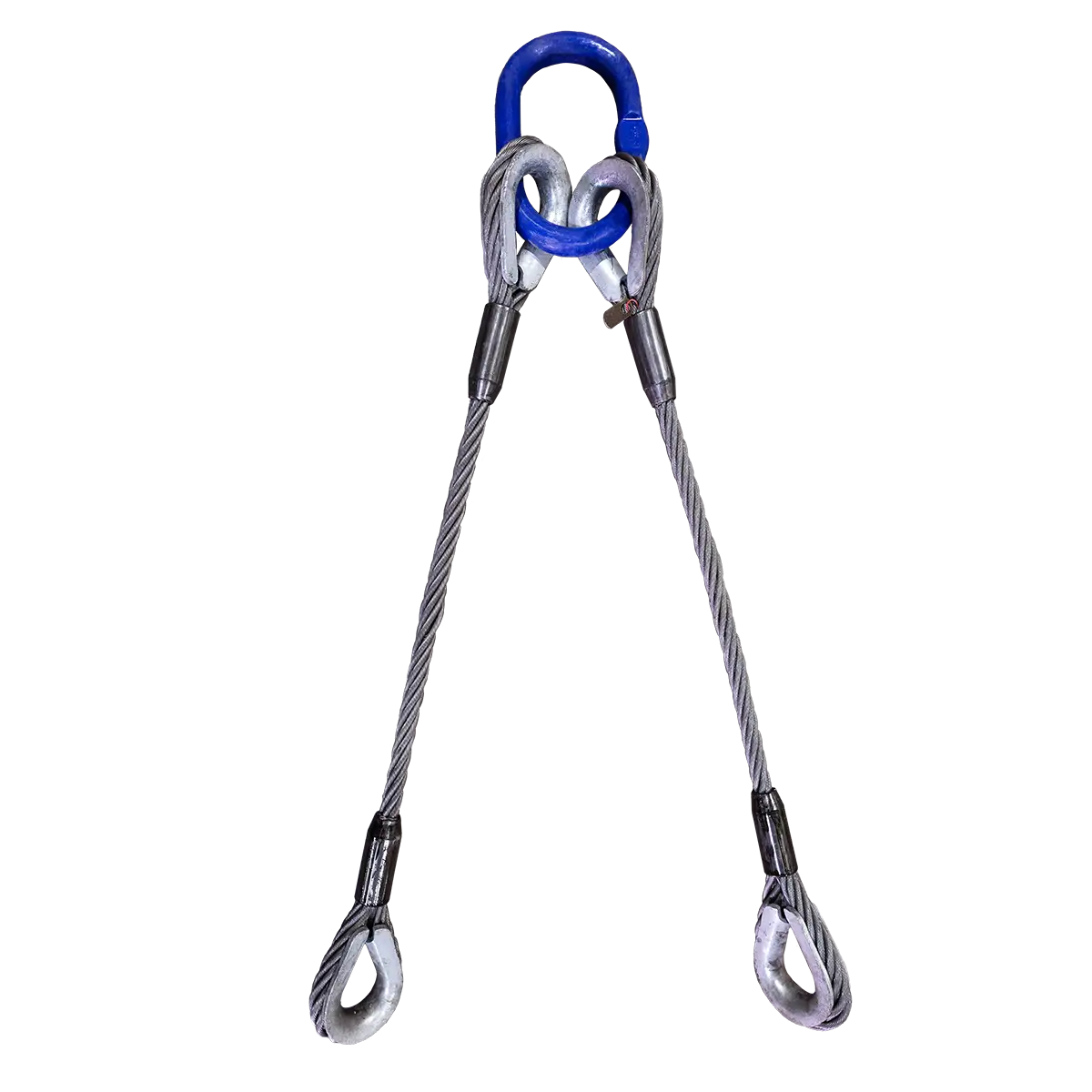

2-leg wire rope lifting bridle slings make for a strong, reliable, and durable lifting solution. These lifting slings help balance a load while providing a safer more controlled lift. The Thimble eye provides extra wear and tear resistance making it a great option for the busy work site.
Features:
- Grade 100 Master link
- Thimble Eye
- Custom Lengths Available
Check out our Rigging Hardware and pair your sling with the right hook.
Size and WLL Chart:
| Wire Rope Diameter (inch) | 60° WLL (lbs.) | 45° WLL (lbs.) | 30° WLL (lbs.) |
|---|---|---|---|
| 1/4 | 2,200 | 1,820 | 1,300 |
| 5/16 | 3,400 | 2,800 | 2,000 |
| 3/8 | 5,000 | 4,000 | 2,800 |
| 7/16 | 6,800 | 5,400 | 3,800 |
| 1/2 | 8,800 | 7,200 | 5,000 |
| 5/8 | 13,600 | 11,000 | 7,800 |
| 3/4 | 19,400 | 15,800 | 11,200 |
| 7/8 | 26,000 | 22,000 | 15,200 |
| 1 | 34,000 | 28,000 | 19,600 |
| 11/8 | 42,000 | 34,000 | 24,600 |
| 11/4 | 52,000 | 42,000 | 30,000 |
| 13/8 | 62,000 | 50,000 | 36,000 |
| 11/2 | 74,000 | 60,000 | 42,000 |
