Description

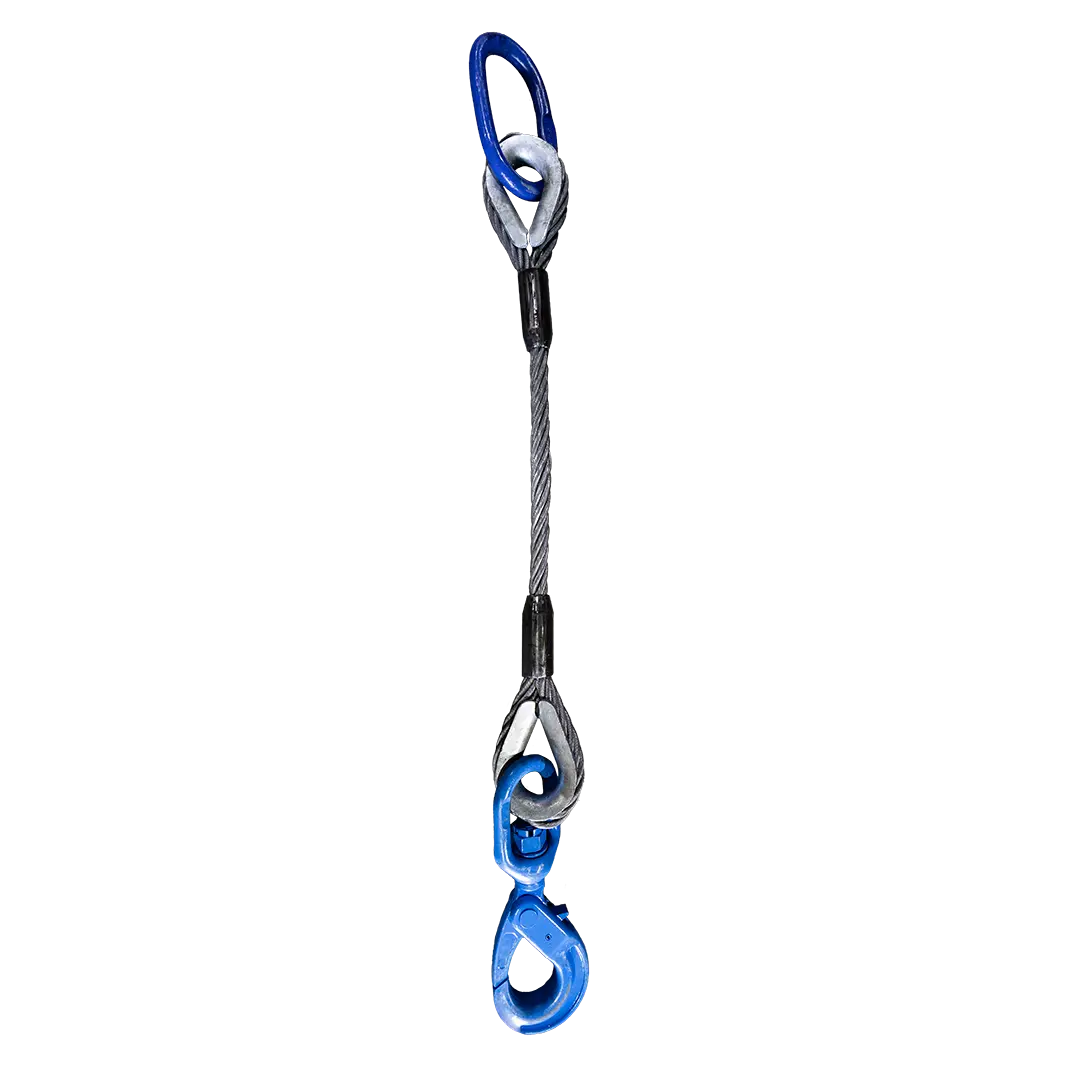

1-leg wire rope lifting bridle slings make for a strong, reliable, and durable lifting solution. These lifting slings help balance a load while providing a safer more controlled lift. The Thimble eye provides extra wear and tear resistance making it a great option for the busy work site.
Features:
- Grade 100 Master link
- Thimble Eye
- Grade 100 Self Locking Hook
- Custom Lengths Available
Check out our Rigging Hardware and pair your sling with the right hook.
General Single Leg Size and WLL Chart:
| Wire Rope Diameter (inch) | Vert. (lbs.) | Chocker (lbs.) | Basket (lbs.) |
|---|---|---|---|
| 1/4 | 1,300 | 960 | 2,600 |
| 5/16 | 2,000 | 1,480 | 4,000 |
| 3/8 | 2,800 | 2,200 | 5,600 |
| 7/16 | 3,800 | 2,800 | 7,600 |
| 1/2 | 5,000 | 3,800 | 10,000 |
| 9/16 | 6,400 | 4,800 | 12,800 |
| 5/8 | 7,800 | 5,800 | 15,600 |
| 3/4 | 11,200 | 8,200 | 22,400 |
| 7/8 | 15,200 | 11,200 | 30,400 |
| 1 | 19,600 | 14,400 | 39,200 |
| 11/8 | 24,000 | 18,200 | 48,000 |
| 11/4 | 30,000 | 22,000 | 60,000 |
| 13/8 | 36,000 | 26,000 | 72,000 |
| 11/2 | 42,000 | 32,000 | 84,000 |
